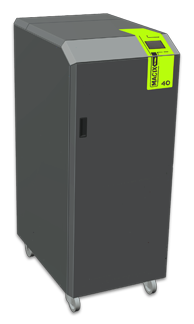

Three phase UPS PL E



UPS PL E consists of an electronic module of power range from 8 kVA up to 15 kVA and battery module located under the electronic module. When the extension batteries pack modules requesting, there are possible extension battery modules that can be connected in parallel.


Fields of application:
  • Data Centres
  • Telecommunications
  • IT equipment
  • Industrial systems
  • Air conditioning



Characteristics:
  • High efficiency up to 94%
  • Soft start from the mains with the gradual taking over of power
  • UPS suitable for cooperation with genset
  • Wide range of input voltage (170V - 275V)
  • On-line UPS with double conversion of energy
  • High overload capacity - 150% overload for 1 minute
  • Possibility of start from batteries
  • Colour touch screen
  • Sophisticated monitoring of input mains state, UPS and load
  • BFP (Back Feed Protection) integrated as standard
  • Small built-up area and excellent handling



Extensions:
  • SNMP adapter - enables communication of Master PC with UPS
  • SMS module - sends SMS about equipment state
  • GPRS module - enables data connection of UPS to a monitoring application by mobile network operators
  • interface converter - enables connection of equipment to Master system via RS422, RS232, RS485
  • binary inputs / outputs module - extends number of inputs and outputs
  • analog inputs module - enables connection of external sensors to a system (ambient temperature, humidity, ...)


Type Power Back-up time
[min]
Dimensions
W x H x D
Weight
without batteries
UPS [kVA] [kW] pf=0,8 [mm] [kg]

PL08E

PL08ET007XS1 8 6,4 4:30 440 x 1000 x 790 95
PL08EV009XS1 8 6,4 10:50 440 x 1000 x 790 95
PL08EV009XS2 8 6,4 29:30 440 x 1000 x 790 95

PL10E

PL10EV007XS1 10 8 4:10 440 x 1000 x 790 95
PL10EV009XS1 10 8 8:20 440 x 1000 x 790 95
PL10EV009XS2 10 8 21:10 440 x 1000 x 790 95

PL12E

PL12EV009XS1 12 9,6 5:30 440 x 1000 x 790 95
PL12EV009XS2 12 9,6 15:00 440 x 1000 x 790 95
PL12EV009S3 12 9,6 25:20 440 x 1450 x 790 103

PL15E

PL15EV009XS1 15 12 5:05 440 x 1000 x 790 95
PL15EV009XS2 15 12 12:40 440 x 1000 x 790 95
PL15EV009S3 15 12 20:40 440 x 1450 x 790 103



Note :  Datasheet in PDF can be downloaded.
