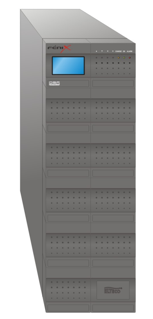

Uninterruptible Power Supplies of PS NG4 series


UPS of PS NG4 series are designed for power supply of IT, measurement and regulation equipment and electrical systems. They provide quality supply of your equipment despite of blackout and mains failures. UPS are built up on the progressive circuit technology of SMD surface installation.

    • ON LINE, sinusoidal output voltage
    • DSP control
    • Double conversion
    • Wide range of input voltage
    • Power factor close to 1, correction of input current waveform
    • Possibility to connect the load with power factor down to 0,6
    • High efficiency
    • Resistance to interference from input mains
    • Possibility to extend the back-up time by battery modules
    • Graphic LCD display
    • Possibility to program the actions depending on time
    • Possibility to operate in ECO mode (low power consumption)
    • Statistical data record, automatic diagnostics
    • Indication of battery status and remaining back-up time
    • USB communication interface
    • Network communication - bult-in modules UM10A01* (LAN adapter) or UC401* (SNMP adapter)
    • Possibility to add RS485 communication interface*



         * OPTION




Back-up power supplies of PS NG4 series (Tower configuration)
Type Power Back-up time1) Dimensions
W x H x D		 Weight
UPS [VA] [W] [min] [mm] [kg]
PS 10NG4 1000 700 12 178 x 360 x 445 24
PS 15NG4 1500 1000 8 178 x 360 x 445 27
PS 20NG4 2000 1330 6 178 x 360 x 445 27
PS 30NG4 3000 2100 8 178 x 576 x 635 65
PS 40NG4 4000 2800 8 178 x 576 x 635 70
PS 50NG4 5000 3500 8 178 x 576 x 635 75



Back-up power supplies of PS NRG4 / NRSG4 series (19" rack built-in)
Type Power Back-up time1) Dimensions
W x H x D		 Weight
UPS [VA] [W] [min] [mm] [kg]
PS 10NRG4 1000 700 12 483(445)* x 133 x 488 24
PS 15NRG4 1500 1000 8 483(445)* x 133 x 488 27
PS 20NRG4 2000 1330 6 483(445)* x 133 x 488 27
PS 30NRSG4** 3000 2100 8 483(427)* x 177 x 542 33
PS 40NRSG4** 4000 2800 8 483(427)* x 177 x 542 34
PS 50NRSG4** 5000 3500 8 483(427)* x 177 x 542 36
Note : 1) - back-up time at nominal load
* - first value specifies front panel`s width, second value specifies width of rack.
** - UPS don`t include batteries inside, back-up time with standard battery module
