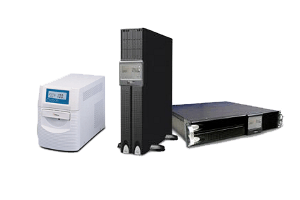

UPS back-up supplies of Jupiter, Jupiter Convertible series
LINE INTERACTIVE
UPS Jupiter is optimum UPS product with sú optimálne high performance as well as
economical cost. Jupiter series UPS has one technical breakthrough which is the Direct Readout of battery remained runtime
during battery discharging condition. When ON-LINE UPS is found its high cost and complexity, the Jupiter series
UPS is an alternative.
- built-in AVR (Automatic Voltage Regulation)
- sine wave output
- LCD displays detail operating status
- easy swappable battery pack
- RS232 interface
- overload and short circuit protection
| Type |
Power |
Back-up
time |
Dimensions |
Weight |
| UPS |
[VA] |
[W] |
[min] |
W x H x D [mm] |
[kg] |
| JP 1000 |
1000 |
600 |
5 |
172 x 235 x 380 |
15 |
| JP 1500 |
1500 |
900 |
5 |
172 x 235 x 380 |
18 |
| JP 2000 |
2000 |
1200 |
5 |
172 x 235 x 470 |
23 |
| JP 3000 |
3000 |
1800 |
5 |
172 x 235 x 470 |
26 |
The Jupiter Convertible series, featured with Double AVR Boost and Double Buck,
Built-in Customer Options Slot, Hot Swappable Battery, and USB Communication Interface, provides a
flexible factor for most of business critical file servers, minicomputers, network switches and hubs, etc.
- built-in AVR (Automatic Voltage Regulation)
- sine wave output
- LCD displays operating status
- easy swappable battery pack
- RS232 interface
- overload and short circuit protection
- Tower / Rack convertible design
| Type |
Power |
Back-up
time |
Dimensions |
Weight |
| UPS |
[VA] |
[W] |
[min] |
W x H x D [mm] |
[kg] |
| JP 1000 |
1000 |
600 |
12 |
440 x 88 x 482 |
24 |
| JP 1500 |
1500 |
900 |
12 |
440 x 88 x 482 |
26 |
| JP 2000 |
2000 |
1200 |
12 |
440 x 88 x 690 |
34 |
| JP 3000 |
3000 |
1800 |
12 |
440 x 88 x 690 |
36 |
