Starting cart for planes

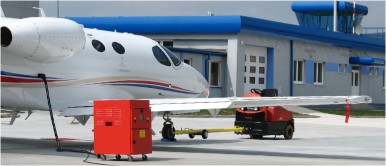

The device BVS 075 024 (starting cart for planes) is designed to power supply board mains or start engines of planes when they are on the ground in the hangar or at the airport.

Nominal output voltage of the device is 28 V DC, maximum current is 1200 A (for 20 seconds).

The connection between the device and the plane is provided through removable cable with length of 5 meters. The cable has two power conductors 70 mm2, which are used for the transfer of electrical energy to the plane and one signal wire 2,5 mm2. The end of the cable has standardized connector.

Construction parameters

Dimensions WxHxD 612 x 760 x 550 mm
Weight 120 kg
Protection IP23
Cooling forced with regulation


Note:
More detailed Datasheet in PDF format can be downloaded.
